Accessories & Consumables
- Flow-through electrochemical cell (EcaCell 353c)
- Gold working electrodes (E-T Au)
- Peristaltic pump tubing and connectors
- Reagent kits and calibration standards
Detects metals at ultra-low concentrations (down to 0.01 µg/L)
24/7 Online Monitoring
Introduction to EcaMon SaFIA

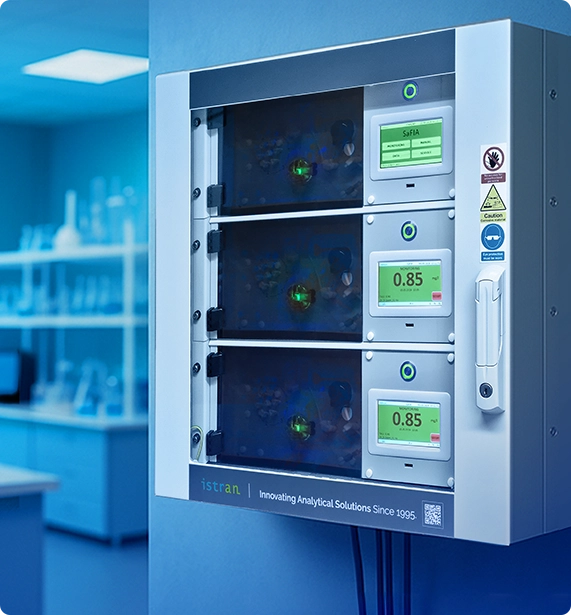

EcaMon SaFIA - Advanced Electrochemical Analyzer
EcaMon SaFIA is a high-performance, stationary electrochemical analyzer developed for continuous monitoring of heavy metals and selected non-metals in water samples. Designed for industrial and environmental applications, it uses advanced coulometric techniques to ensure accurate and reliable results.
- Unattended 24/7 monitoring in water treatment and industrial systems
- High precision detection of trace metals using electrochemical methods
- Low reagent consumption with optimized flow-through system
- Fully automatic operation, ideal for fixed installations
Superior Sensitivity & Stability
Core Advantages of EcaMon SaFIA
Reliable & Autonomous Monitoring
High Sensitivity

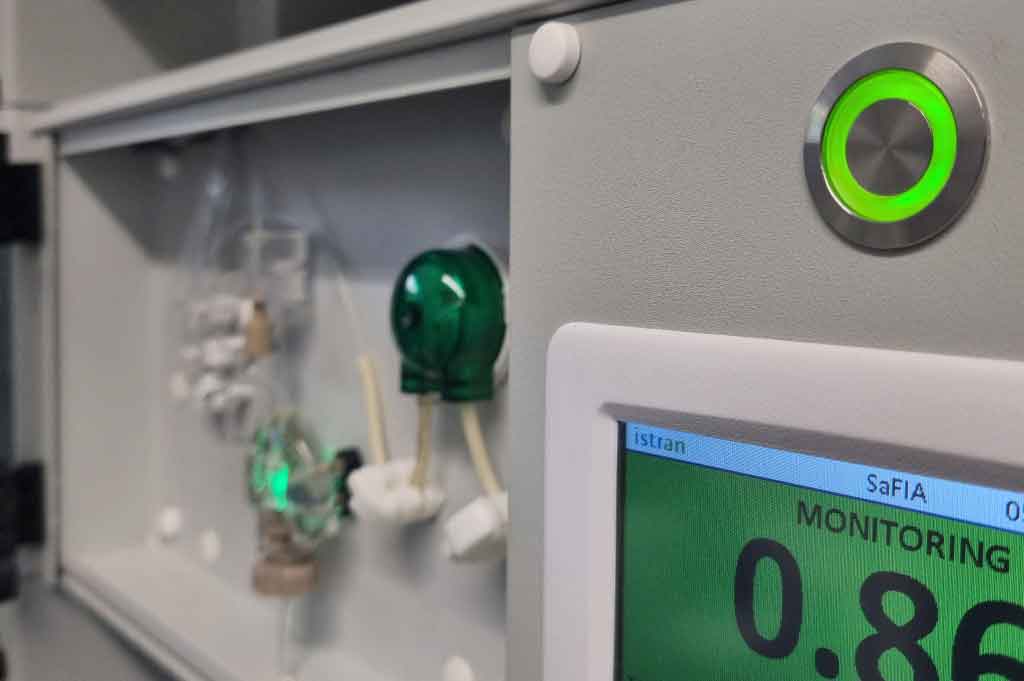

Automated Flow System
SaFIA peristaltic pump system with smart valve control
Robust Build
Rack-mounted stainless-steel housing with IP55 protection
Multi-Channel Option
Supports up to 3 independent analytical modules

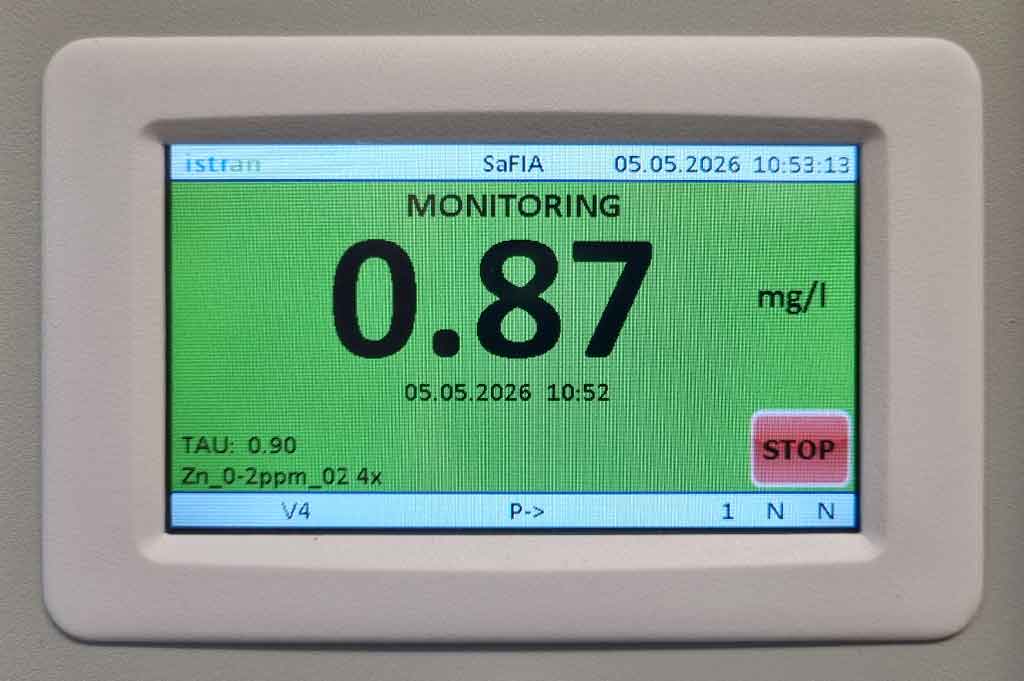

User Interface
Intuitive software for calibration, data logging, and remote control
Network Connectivity
RS-232 / RS-422 / RS-485 and 4–20 mA analog output
Low Maintenance
Automated regeneration and cleaning routines
Cost-Effective
Long electrode life and efficient reagent usage
Wall-Mounted Design
Fixed installation with easy access for maintenance
How EcaMon SaFIA Works
Electrochemical Analysis Technology
EcaMon SaFIA uses a two-step electrochemical process based on stripping voltammetry/chronopotentiometry. The sample is pre-treated to eliminate interferences and then passed through a flow-through cell where the target analyte is deposited on a working electrode. After deposition, the analyte is stripped by applying a constant current, and the resulting signal is processed to calculate the concentration.
Step : 1
Sample Intake
& Pre-treatment
A fresh water sample continuously flows into a sample loop. The system selects a portion, adds reagents if needed, and performs chemical pre-treatment in a reaction coil to eliminate interferences.
Step : 2
Flow-through Electro-
chemical Measurement
The treated sample is pumped through the electrochemical cell (EcaCell 353c or 104). The analyte is deposited on a working electrode and then stripped by a constant current. The resulting signal is measured for quantification.
Step : 3
Automated Data
Handling & Monitoring
The system calculates the result, performs calibrations and regenerations as programmed, and stores the data locally or transfers it to external systems via analog or digital output.
Applications of EcaMon SaFIA
What Can It Analyze?
EcaMon SaFIA is designed for continuous online monitoring of various water types and environments, providing high-precision results across a range of sample conditions. Its robust design and automatic operation make it suitable for unattended use in demanding settings.
Heavy Metal Detection
- Arsenic (As), Mercury (Hg), Lead (Pb), Cadmium (Cd)
- Copper (Cu), Zinc (Zn), Iron (Fe), Manganese (Mn)
- Chromium (Cr), Thallium (Tl), Bismuth (Bi), Selenium (Se)
Anions & Non-metals (on request)
- Chlorides, Bromates, Phosphates, and similar species
Use Cases
- Drinking Water Plants: Ensures compliance with arsenic and heavy metal limits
- River and Groundwater Monitoring: Real-time environmental tracking
- Industrial Wastewater: Continuous discharge control and reporting
- Chemical and Process Water: Monitoring in production lines or treatment loops
EcaMon SaFIA is particularly effective in facilities requiring 24/7 online monitoring with minimal human intervention.
Why Choose us?
Why EcaMon SaFIA is a Cost-Effective
Alternative to ICP-MS & AAS?
Compared to traditional laboratory instruments like ICP-MS and AAS, EcaMon SaFIA offers a fully automated, continuous monitoring solution for water quality analysis. It ensures real-time, high-precision results with minimal maintenance, making it ideal for industrial and environmental applications that require 24/7 operation without manual intervention.
EcaMon SaFIA | ICP-MS | AAS |
|---|---|---|
Cost: Affordable | Cost: Very Expensive | Cost: Moderately Expensive |
Measurement Speed: 5–45 min | Measurement Speed: 30+ min | Measurement Speed: 15–30 min |
Sample Preparation: Minimal | Sample Preparation: Extensive | Sample Preparation: Moderate |
Maintenance: Low | Maintenance: High | Maintenance: Medium |
details
Technical Specifications
- Instrument Type: EcaMon SaFIA3 (As)
- Measurement Principle: Stripping voltammetry / chronopotentiometry
- Measuring Range: 0–100 µg/L (custom-configurable)
- Resolution: 0.01 µg/L
- Accuracy: ±10% at 50 µg/L
- Analysis Time: 2–45 minutes (application dependent)
- Dimensions (W x D x H): 600 x 473 x 612 mm
- Weight: Approx. 50 kg
- Power Supply: 110 V, 50–60 Hz
- Enclosure Type: Wall-mounted 19" rack, IP55 protection
- Inputs/Outputs:
- Digital Input (dry contact)
- Analog Output (4–20 mA, isolated)
- Modbus RS-232 / RS-422 / RS-485
- Operating Conditions: 15–35 °C, up to 90% relative humidity
- Software Compatibility: Windows XP / Vista / 7 / 8 / 10
- Reservoir Volumes:
- Reagent A: 5 L
- Reagent B: 1 L
- Calibration Solution: 500 mL
ANALYSERS
Our Analyzers
PCA2 – Portable Analyzer
Key Features
- Battery-powered for field & lab use
- Detects metals, semi-metals, non-metals
- Measurement range: sub-μg/L to g/L
EcaMon SaFIA – Process Analyzer
Key Features
- Automated real-time process monitoring
- Up to 3 parameters analyzed simultaneously
- High accuracy: 1-5% precision
EcaFlow – Laboratory Analyzer
Key Features
- PC-controlled high-precision analysis
- Over 70 validated applications
- Autosampler for 42 samples
Innovative Electrochemical Analysis
Harnessing cutting-edge technology to ensure precise, reliable, and rapid analytical results.
Optimized for Efficiency
Streamlining workflows with automated, user-friendly solutions for laboratories, industries, and field applications.
Sustainable & High-Precision Solutions
Developed with a commitment to accuracy, sustainability, and cost-effectiveness, ensuring top-tier performance in every measurement.
Looking for a reliable solution
for continuous water quality monitoring?
EcaMon SaFIA is ideal for demanding environments that require 24/7 precision and minimal maintenance. Contact us today for technical specifications, pricing, or a tailored consultation.
